• The frame of machine combines the knitting principle with human engineering. The outline is pretty and it’s firm and reliable It adopts good cast iron, long natural timing effect and artificial timing effect, which prevents the parts from deforming.

• Special driving system makes the machine run more stable. Main plate and gear of main plate adopt oil-soaking and imported high-class lubricating oil so that the running noise is small, and driving gear is durable.

• Strong interchangeability. just by changing the parts in the heart, single knitting machine could be changed into terry or three thread fleece machine.

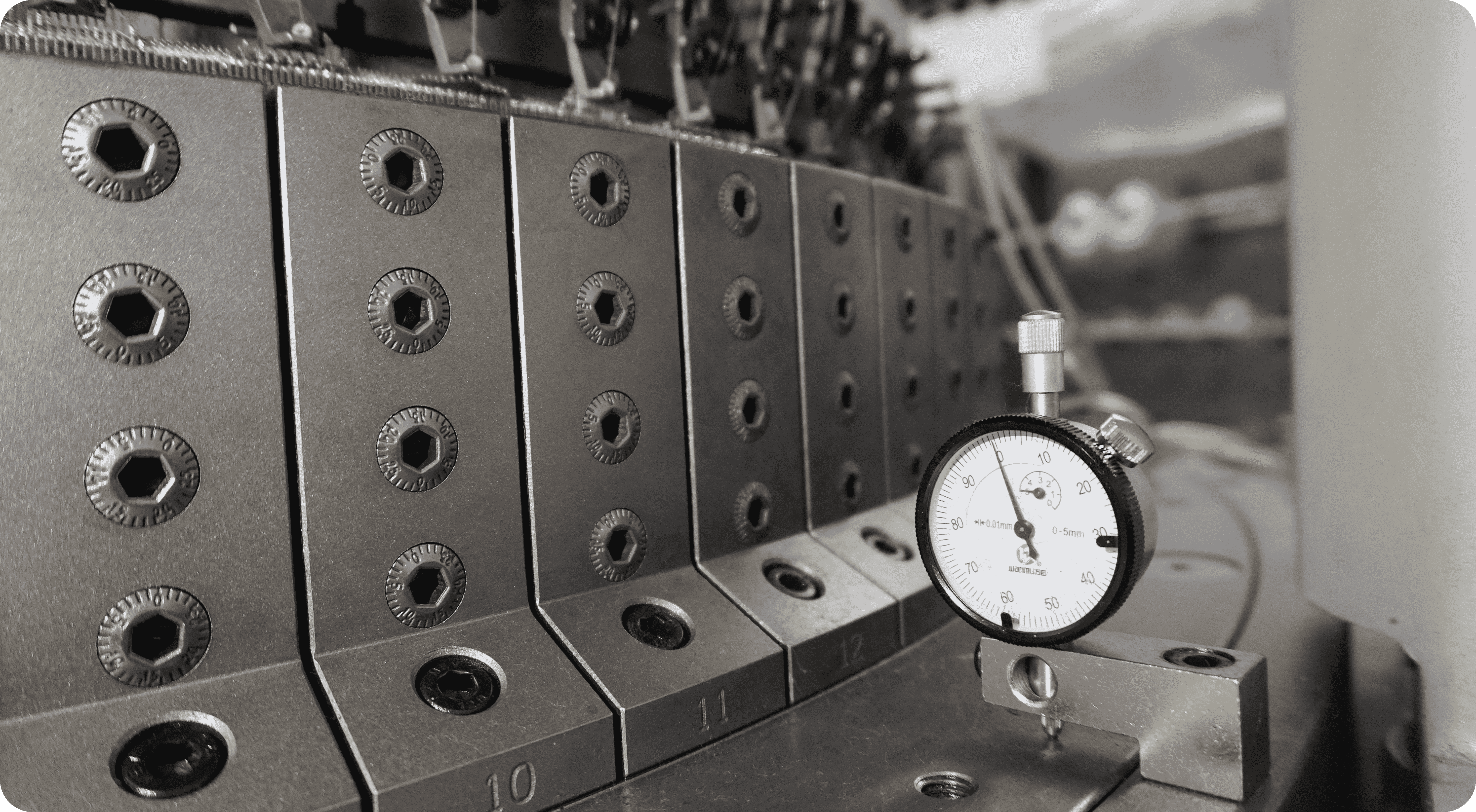

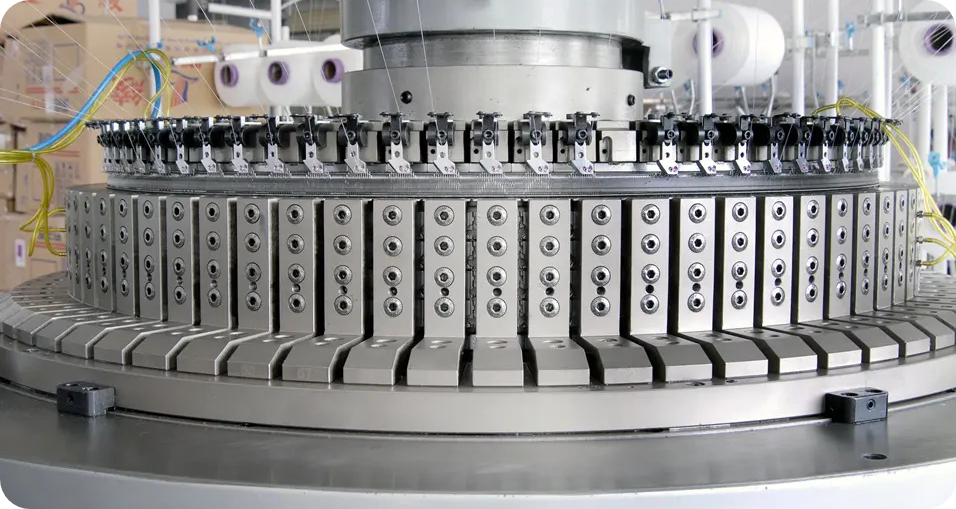

• All cams and cam box are made of imported Japan alloy steel, engraved and abraded by CNC processing center, which makes the needle track smooth, and the needle would be fluent and durable when the machine runs at high speed.

• New type designed center system has tight construction and stable going up and down, which makes the fabric weight adjusted precisely and simply.

• By changing cams with different functions, the machine could produce various fabrics with different single structures.

Diameters

Feeders

Gauge

RPM

4"-44"/3 feeders per inch

12F-132F

12G-50G

18-40 R.P.M

13"-44"/3.2 feeders per inch

42F-140F

13"-44"/4 feeders per inch

52F-176F

12G-32G

30"-44"/6 feeders per inch

180F-264F

Standard Equipment

Optional Equipment

Positive Feeding Units

Spandex preparation device

Automatic Lubrication Device

Lycra Feeding Units

Needle And Fabric Detector

Folding Device

Take Down System

Yarn Input Measuring Device

Automatic Cleaning Device

Open Width Frame

Yarn Creel System

Central Stitch System
