High Speed Double Jersey/Rib Knitting Machine
High Speed Double Jersey/Rib Knitting Machine
High Speed Double Jersey/Rib Knitting Machine
High Speed Double Jersey/Rib Knitting Machine
High Speed Double Jersey/Rib Knitting Machine
High Speed Double Jersey/Rib Knitting Machine
+
  • High Speed Double Jersey/Rib Knitting Machine
  • High Speed Double Jersey/Rib Knitting Machine
  • High Speed Double Jersey/Rib Knitting Machine
  • High Speed Double Jersey/Rib Knitting Machine
  • High Speed Double Jersey/Rib Knitting Machine
  • High Speed Double Jersey/Rib Knitting Machine

High Speed Double Jersey/Rib Knitting Machine

brief introduction:

  • Multi-functional Double jersey rib circular knitting machine with 2 feeders/2.1 feeders/2.4 feeders/2.8 feeders/3.2 feeders per diametrical inch
  • Cam box design to receive up to 4 tracks on the cylinder and 2 tracks on dial
  • The machine allows to produce double jersey fabric,mesh fabric.sandwich fabric or Roman fabrice etc
  • Advanced equipment support
  • Advanced production technology
  • High standard quality control
  • Multiple optional devices
Yonthin
图片名称
Yonthin

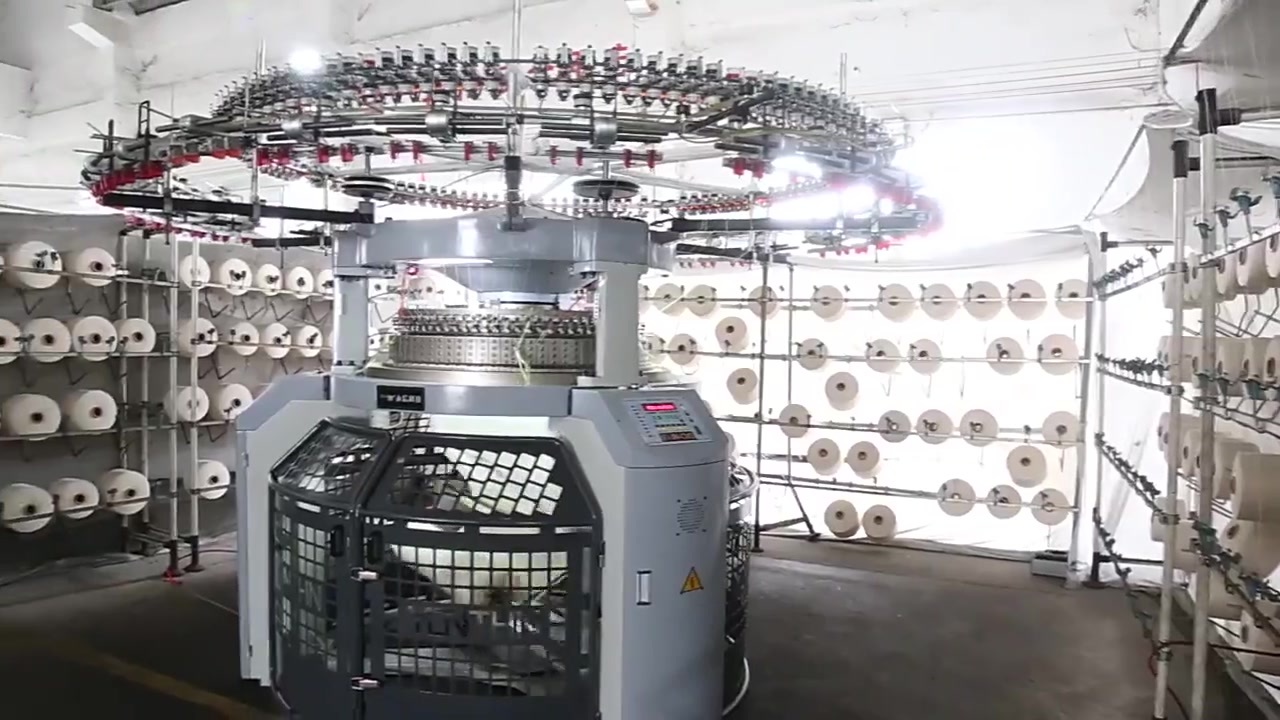

High Speed Double Jersey/Rib Knitting Machine

What can I do with YONTHIN circular knitting machine?

Imagination is infinite, as long as you can imagine, you can knit.

Using Yonthin's sandwich health fabric, Roman fabric, mesh fabric and other fabrics to make various clothing.

Why is it good at knitting?

Every factor affecting knitting accuracy has been taken into consideration. Control system, transmission system, motor, cam, etc,Where you cannot see are details.

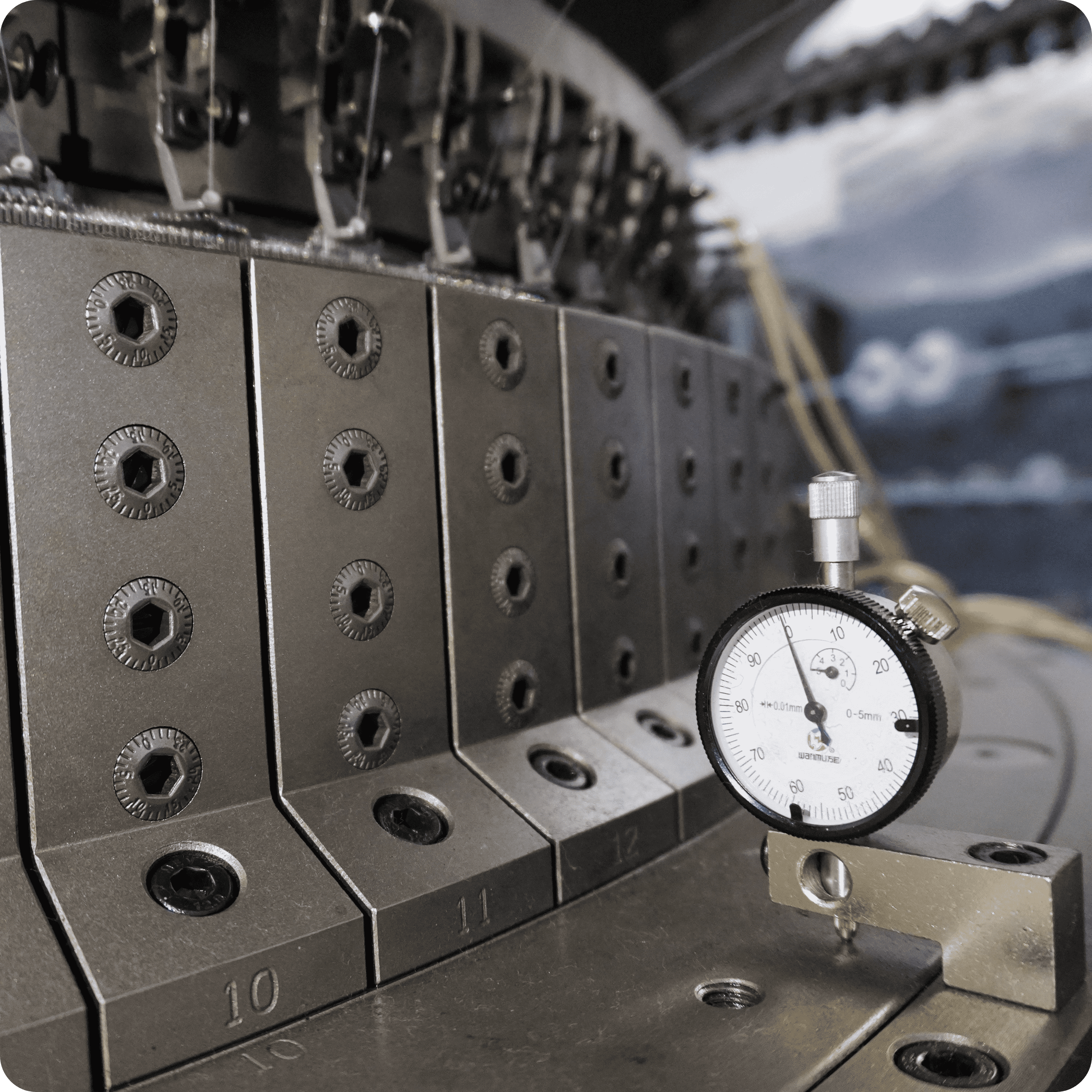

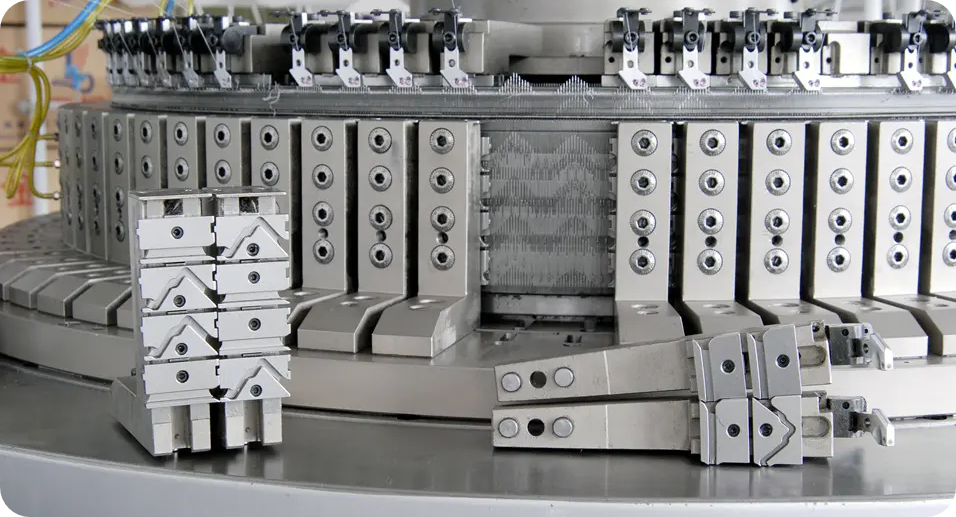

Cam material



- Made of imported alloy steel

- Adopt imported special heat treatment

- Using Computer CAD/CAM to Assist in Design

- Less needle damage and high rotational speed

- CNC machining center carving and grinding processing

Sinkers



- Reduce winding tension

- Can move smoothly on a flat surface

- Make the fabric uniform to achieve perfect quality

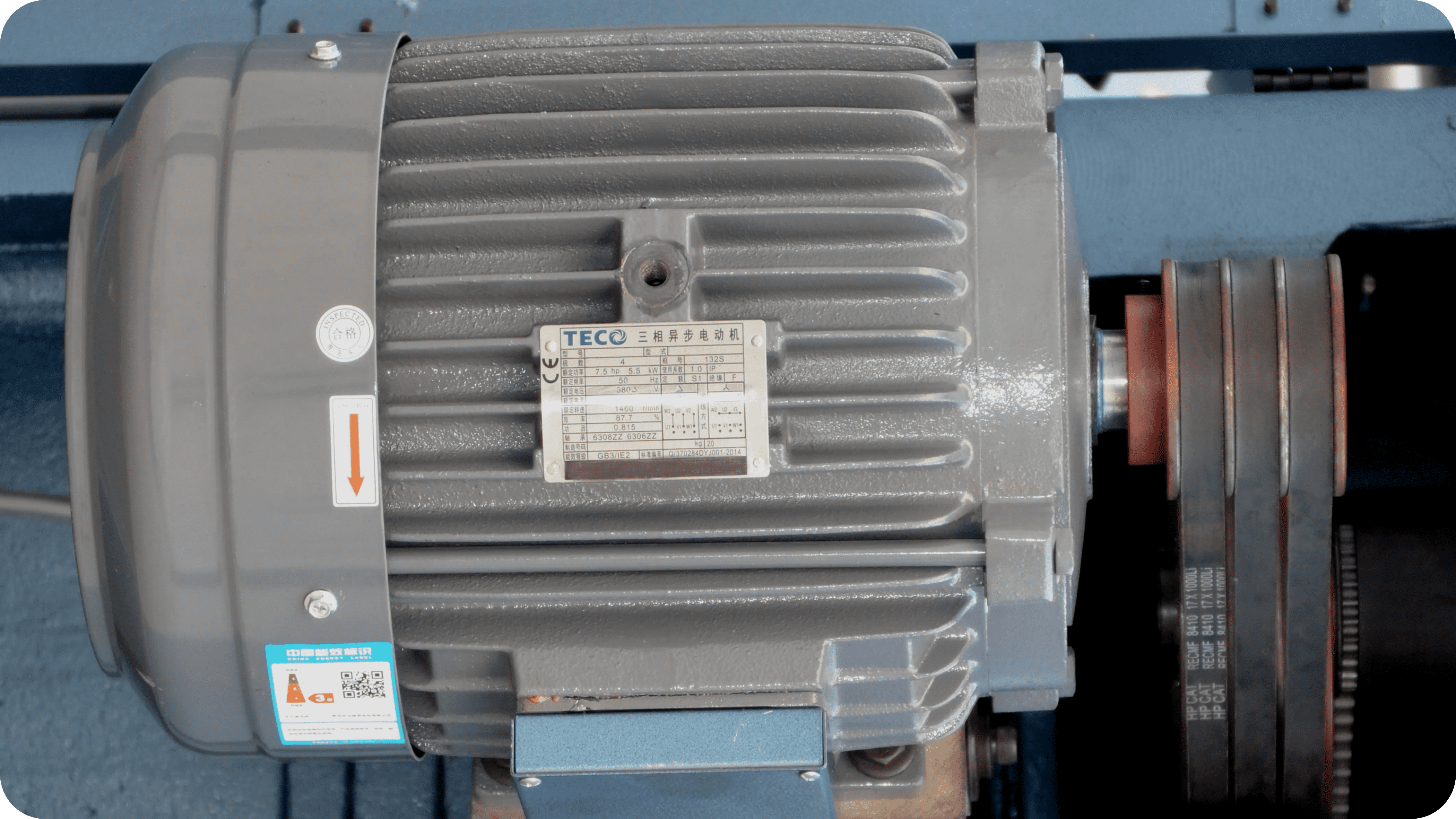

Electric machinery



- Strong driving force

- Stable operation

- Low noise

- High economic benefits

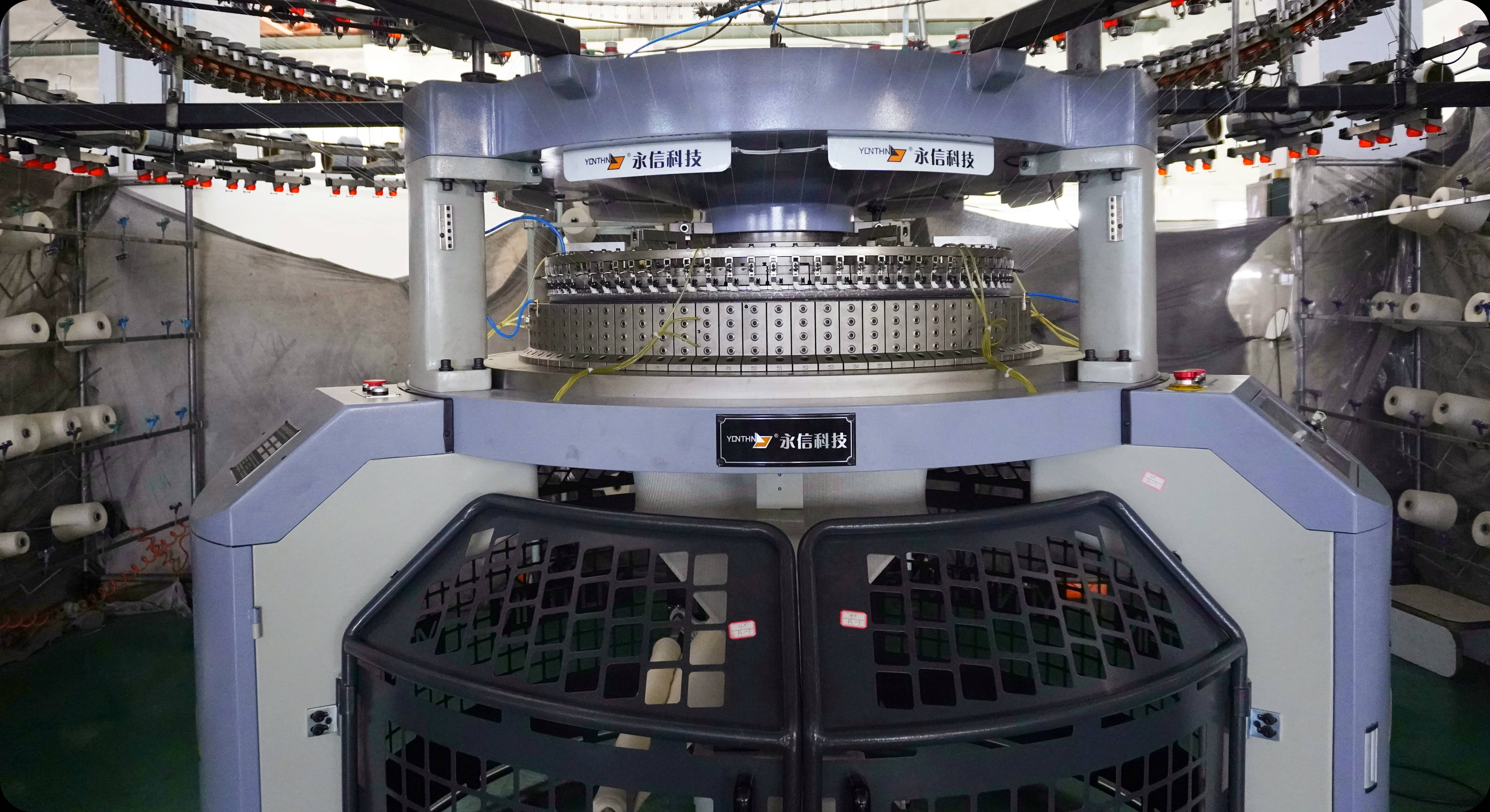

Machine framework



- Design based on ergonomics and knitting principles

- Using high-quality cast iron

- Beautiful and sturdy





The perfect choice for knitting

Central lifting system

Compact structure, smooth lifting, precise and simple adjustment of fabric weight

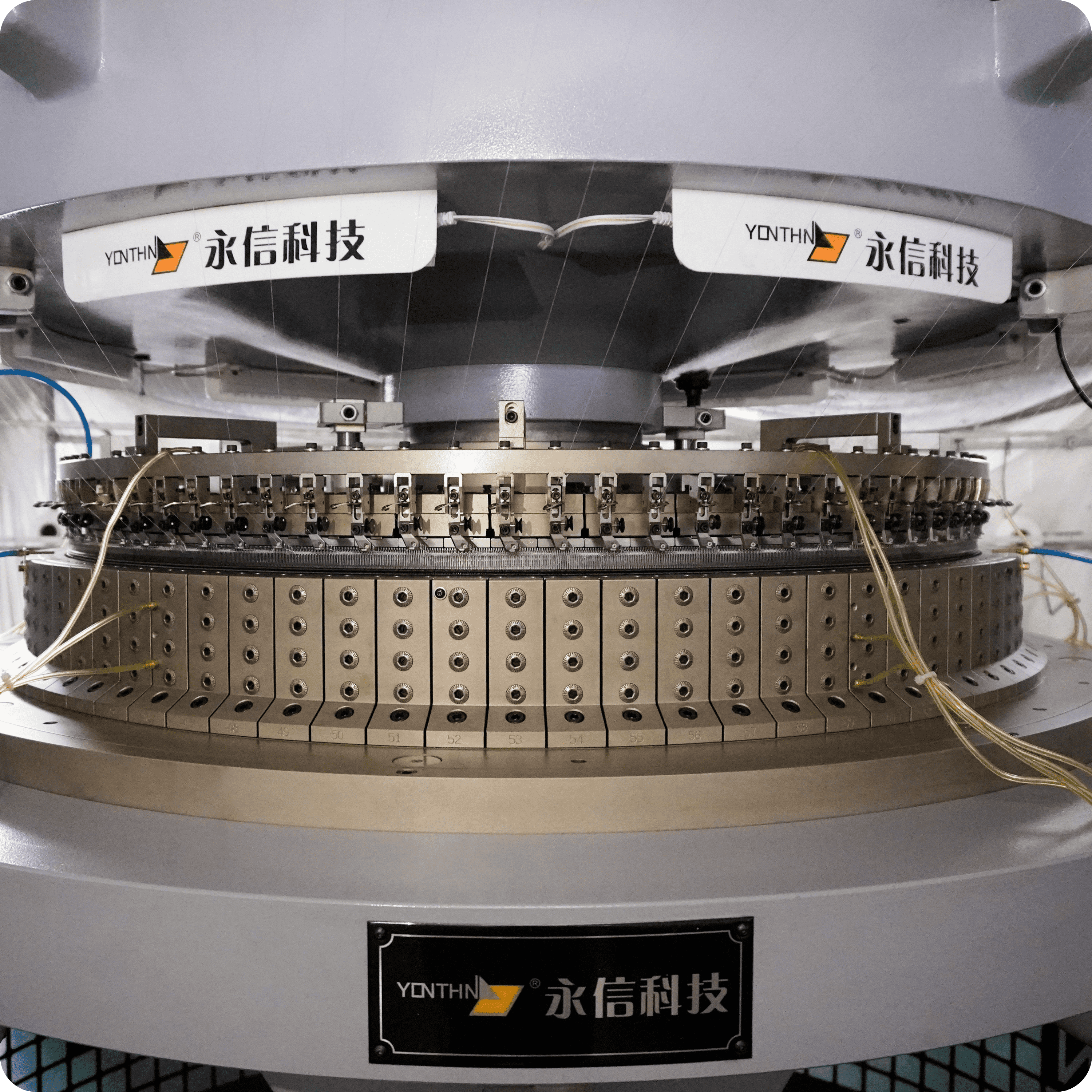

Heart components

Strong interchangeability, quick replacement, easy to operate

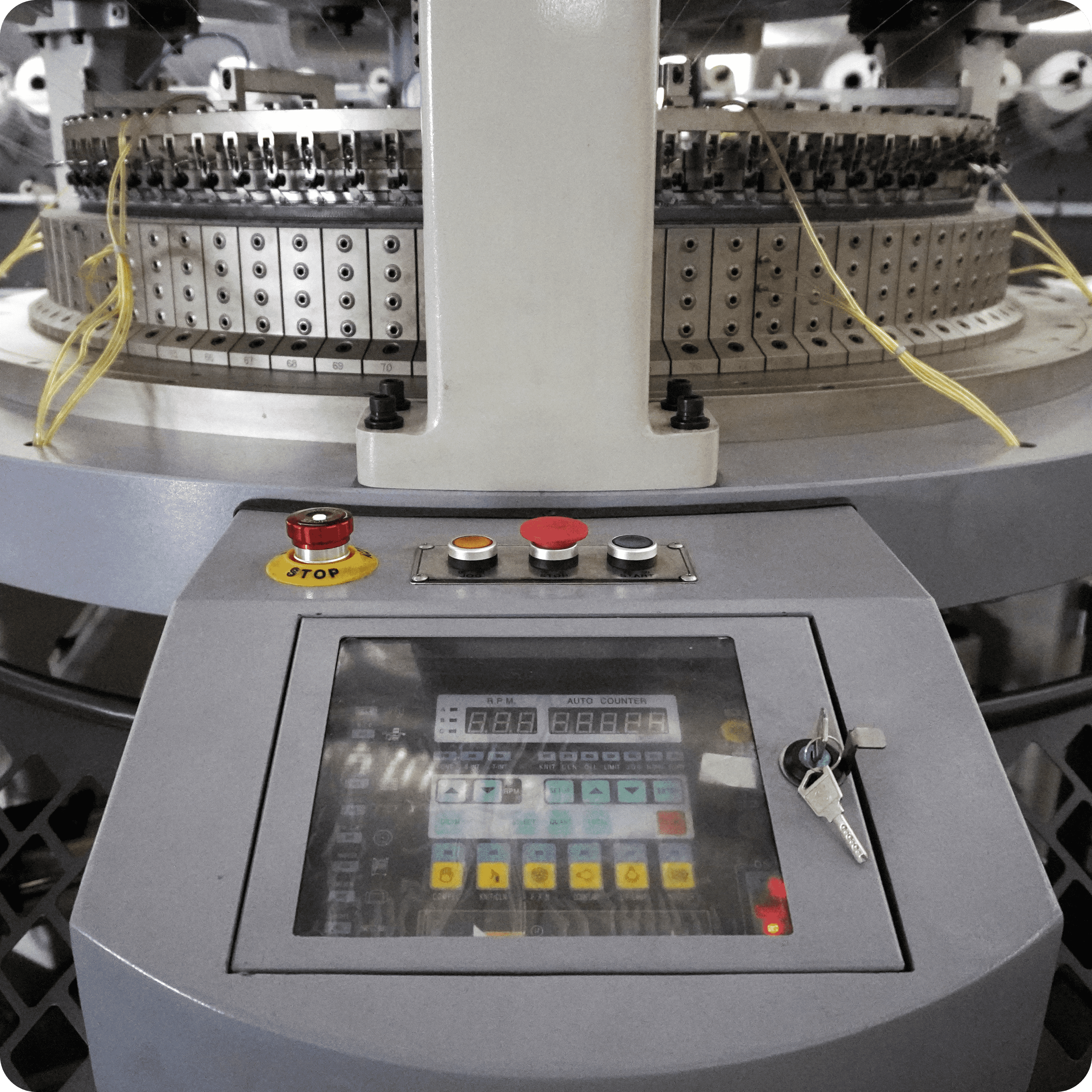

Computer control system

Easy system operation、Computer needle selection system、USB input



Product Features


  • Top and bottom gears adopt oil-soaking to reduce abrasion and noise, then improve their precision and life.
  • Adopting new designed frame of the machine, dial cam box base and sleeve have simultaneous displacement so that it becomes exacter and simpler to adjust the needle tolerance and clearance between top and bottom.
  • Multifunctional machine, equipped with cams of 2 tracks in Dia and 4 tracks in Cylinder. just by changing the professional arrangement of cams, it would change the double structure and meet the changing market.





Basic Parameters

Diameters

Feeders

Gauge

RPM

25"-44"/2 feeders per inch

50F-88F

16G-42G

15-30 R.P.M

25"-44"/2.1 feeders per inch

52F-94F

25"-44"/2.4 feeders per inch

60F-106F

30"-44"/2.8 feeders per inch

70F-122F

30"-44"/3.2 feeders per inch

96F-108F





Optional Device

Standard Equipment

Optional Equipment

Positive Feeding Units

Spandex preparation device

Automatic Lubrication Device

Lycra Feeding Units

Take Down System

Folding Device

Automatic Cleaning Device

Yarn Input Measuring Device

Yarn Creel System

Open Width Frame



Central Stitch System
